Overview
-
840 Wh
Samsung/LG Battery
-
50 Miles
Per Charge (maximum) 1
-
Full Suspension
with hydraulic lockout
-
750 W
Geared Hub Motor
-
20+ Mph
Top Speed 2
-
330 lbs
Payload Capacity
-
20×4 “
Kenda Fat Tire
-
7-Speed
Shimano Derailleur
Specs
Recommended Height: 5’1″ ~ 6’1″
-
A – total length69
-
B – handlebar height44.5
-
C – handlebar length28
-
D – wheelbase45
-
E – wheel diameter23
-
F – minimum seat height23.8
-
H – chain stay length19.7
-
L – head tube length6.3
-
N – standover height16.9
Specification
-
Frame6061 Aluminum frame
-
HeadsetNeco A16M 44*44*30
-
ForkWB800-HLO-20″ 28.6*25.4*270mm lockout & preload adjustable
-
ShockDual coil spring suspension 290mm
-
Front wheelAluminum integrated wheel
-
Rear wheelAluminum integrated wheel
-
TiresKenda K1188 Krusade 20×4.0
-
BatterySamsung/LG 48V 15Ah
-
Motor750W brushless gear motor
-

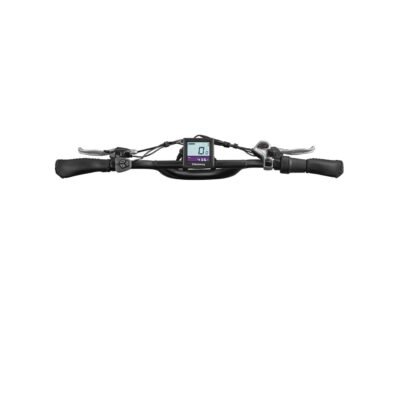

DisplayLCD display with USB charging
-
ThrottleHalf twist throttle
-
SensorsCadence sensor丨speed sensor丨brake sensor
-
CranksetCrank arm: 4-jaw L/R forged alloy 170mm | Chain ring: 46T
-
FreewheelShimano MF-TZ500-7 14-28T
-
ChainKMC Z8.3-EPT 120L
-
GroupsetShimano altus M310 7 speed
-
Front brakeTektro ARIES MD-M300 mechanical disc brakes
-
Rear brakeTektro ARIES MD-M300 mechanical disc brakes
-
RotorsTektro TR180-24 F:180mm R:180mm
Components
-
StemMA-5040 28.6*31.8mm
-
HandlebarHB-6001 22.2*31.8*710mm
-
SaddleHimwiay saddle
-
PedalAluminum pedal
-
Lights48V LED light
-
KickstandHeavy-duty aluminum kickstand
Others
-
Range30-50 miles
-
Controller48V/22A
-
ChargerUS standard 2.0 A smart charger
-
Rider height5’1″ ~ 6’5″
-
Weight92lb.(with battery)
-
Max. system weight330 lb.
