28mph
Top assisted speed
Up to 68 Miles of Range
Highest range Rev ebike
6 Pedal Assist Levels
Propel while pedaling
.svg?v=1704905965623&options=)
750W
Planetary geared hub motor
.svg?v=1704905967137&options=)
48V/720Wh
LG Li-ion battery
Tektro Hydraulic Disc Brakes
Consistent & confident stopping power
4” Fat Tires
Superior puncture protection for any terrain
100mm Travel Suspension Fork
Absorbs impact
350 lbs
Recommended weight limit
UL2849 Certified
Safety tested and approved by a UL accredited lab
Specification
FRAMESET
- Sizes1 size 20″
- MaterialValen 6061 hydroformed aluminum with, integrated downtube battery and replacable derailleur hanger.
- ForkTriple Clamp with 100mm of travel
WHEELSET
- Rims20″ single-wall aluminum 36H, for disck brake with cut-outs
- HubsF: Aluminum bolt-on with 17mm axle nuts. 36 hole
- Spokes13G w/brass nipples
- Tires20 x 4.0 Fat MTB with puncture protection and reflective sidewall
E-POWER SYSTEM
- Motor750W rear hub
- Battery720Wh/48VLG 21700 cells; Charge on or off bike

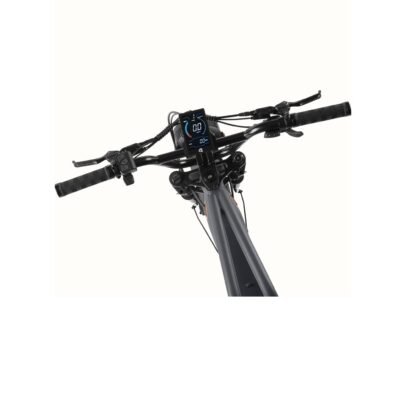

- DisplayCenter mounted color LCD
- Charger48V/2A
- 48V/750W rangeUp to 68 miles
- Assist Levels1-6 PAS, Throttle and walk-mode
DRIVETRAIN
- Rear Derailleur8 speed Shimano Altus
- Shifter8 speed Shimano Rapidfire Plus
- Crankset3-Piece aluminum w/steel 38T chainrings with double alloy chainguard
- ChainKMC 8 speed
- BBSealed cartridge
- Freewheel/CogShimano 8 speed 11-34T
COMPONENTS
- HeadsetThreaded, steel, 1 1/8″ (28.6mm)
- BrakesTektro Hydraulic with 180mm ebike specific rotors and semi-metallic pads
- HandlebarsSteel BMX style
- GripsLock-on comfort grips.
- StemBMX Die Cast Alloy 22.2mm clamp
- SaddleRetrospec Custom 2-piece Moto
- PedalsAlloy Platform
EXTRAS
- KickstandAlloy chainstay mount
- Bottle CageAlum alloy
- Item Weight72 lbs (battery included)
- Recommended Weight Limit350lbs
