Apple Mac Studio M2 Max Chip with 12Core CPU 30Core GPU 32GB RAM 512GB SSD

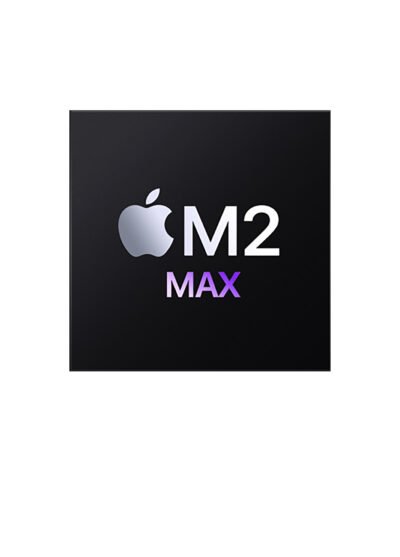

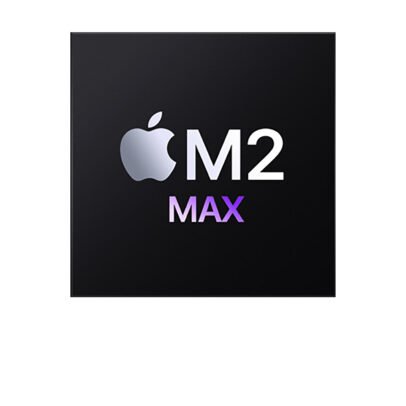

Chip
Apple M2 Max chip
- 12-core CPU with 8 performance cores and 4 efficiency cores
- 30-core GPU
- 16-core Neural Engine
- 400GB/s memory bandwidth
Media engine
- Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
- Video decode engine
- Two video encode engines
- Two ProRes encode and decode engines
Configurable to:
M2 Max with 12-core CPU, 38-core GPU, and 16-core Neural Engine
Storage
512GB
512GB SSD
Configurable to:
1TB, 2TB, 4TB, or 8TB
Memory
32GB
32GB unified memory
Configurable to:
64GB (M2 Max) or 96GB (M2 Max with 38‑core GPU)
Display Support
M2 Max
Simultaneous support for up to five displays:
-
-
- Four displays with 6K resolution at 60Hz over Thunderbolt and one display with 4K resolution at 60Hz over HDMI
- Two displays with 6K resolution at 60Hz over Thunderbolt and one display with 8K resolution at 60Hz or 4K resolution at up to 240Hz over HDMI
-
M2 Ultra
Simultaneous support for up to eight displays:
-
-
- Eight displays with up to 4K resolution at 60Hz
- Six displays with up to 6K resolution at 60Hz
- Three displays with up to 8K resolution at 60Hz
-
Thunderbolt 4 digital video output
-
-
- Support for native DisplayPort output over USB‑C
-
HDMI display video output
-
- Support for one display with up to 8K resolution at 60Hz or 4K resolution at 240Hz
- Support for variable refresh rate (VRR), HDR, and multichannel audio
Video Playback
- Supported formats include HEVC, H.264, AV1, and ProRes
- HDR with Dolby Vision, HDR10, and HLG
Audio Playback
Audio
- Built-in speaker
- 3.5 mm headphone jack with advanced support for high-impedance headphones
- HDMI port supports multichannel audio output

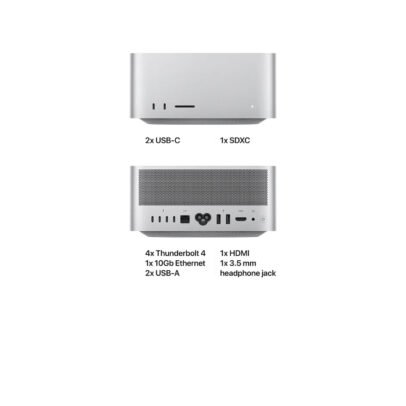

Connections and Expansion
-
Four Thunderbolt 4 ports with support for:
- Thunderbolt 4 (up to 40Gb/s)
- DisplayPort
- USB 4 (up to 40Gb/s)
- USB 3.1 Gen 2 (up to 10Gb/s)
- Two USB-A ports (up to 5Gb/s)
- HDMI port
- 10Gb Ethernet
- 3.5 mm headphone jack
On front (M2 Max):
- Two USB-C ports (up to 10Gb/s)
- SDXC card slot (UHS-II)
On front (M2 Ultra):
- Two Thunderbolt 4 ports (up to 40Gb/s)
- SDXC card slot (UHS-II)
Wi-Fi
- Wi-Fi 6E (802.11ax)
Bluetooth
- Bluetooth 5.3
Ethernet
- 10Gb Ethernet (Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet using RJ-45 connector)
- Height: 3.7 inches (9.5 cm)
- Width: 7.7 inches (19.7 cm)
- Depth: 7.7 inches (19.7 cm)
- Weight (M2 Max): 5.9 pounds (2.7 kg)
- Line voltage: 100–240V AC
- Frequency: 50Hz to 60Hz, single phase
- Maximum continuous power: 370W
- Operating temperature: 50° to 95° F (10° to 35° C)
- Storage temperature: –40° to 116° F (–40° to 47° C)
- Relative humidity: 5% to 95% noncondensing
- Operating altitude: tested up to 16,400 feet (5000 meters)
Your Mac mini comes with 90 days of complimentary technical support and a one‑year limited warranty. Purchase AppleCare+ for Mac to extend your coverage from your AppleCare+ purchase date and add unlimited repairs for accidental damage from handling, each subject to a service fee of $99 for screen damage or external enclosure damage, or $299 for other accidental damage, plus applicable tax.
- Mac Studio
- Power cord
macOS
macOS is the most advanced desktop operating system in the world. And with macOS Sonoma, work and play on your Mac are even more powerful — with new ways to elevate your video presentations, boost your gaming performance, and personalize your device.
Accessibility features help people with disabilities get the most out of their new Mac mini. With built-in support for vision, hearing, mobility, and learning, you can create and do amazing things.
Features include:
- Voice Control
- VoiceOver
- Zoom
- Increase Contrast
- Reduce Motion
- Siri and Dictation
- Switch Control
- Closed Captions
- Text to Speech
Mac Studio and the Environment
Mac Studio is designed with the following features to reduce its environmental impact:
Made with better materials
Over 40% recycled content in the entire product, including:
- 100% recycled aluminum in the enclosure of Mac mini with M2 and M2 Pro, and in the thermal module of Mac mini with M2 Pro
- 100% recycled rare earth elements in all magnets
- 100% recycled tin in the solder of multiple printed circuit boards
- 100% recycled gold in the plating of multiple printed circuit boards
- 35% or more recycled plastic in multiple components
Energy efficient
- ENERGY STAR® certified
Smarter chemistry
- Mercury-, BFR-, PVC-, and beryllium-free
Green manufacturing
- Apple’s Zero Waste Program helps suppliers eliminate waste sent to landfill
- All final assembly supplier sites are transitioning to 100% renewable energy for Apple production
Responsible packaging
- 100% of virgin wood fiber comes from responsibly managed forests
- 96% fiber-based packaging and no outer plastic wrap
