Apple 2023 Mac Mini M2 Pro Chip
Chip

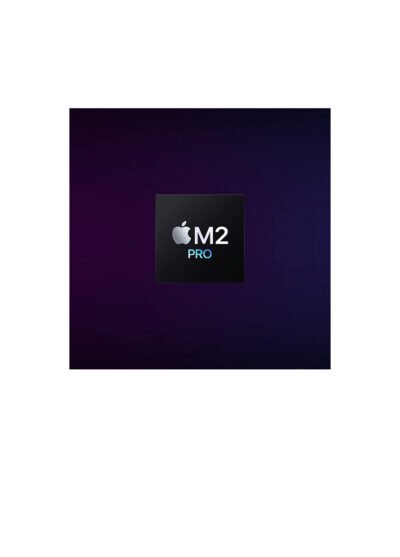

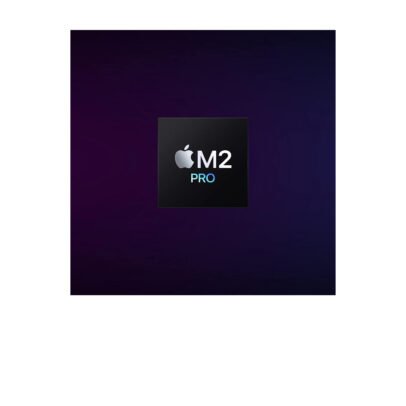

Apple M2 Pro chip
- 10-core CPU with 6 performance cores and 4 efficiency cores
- 16-core GPU
- 16-core Neural Engine
- 200GB/s memory bandwidth
Media engine
- Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
- Video decode engine
- Video encode engine
- ProRes encode and decode engine
Configurable to:
- M2 Pro with 12-core CPU and 19-core GPU
Storage
512GB
- 512GB SSD
Configurable to:
- 1TB, 2TB, 4TB, or 8TB
Memory
- 16GB unified memory
Configurable to:
- 32GB
Display
Simultaneously supports up to two displays:
- One display with up to 6K resolution at 60Hz over Thunderbolt and one display with up to 5K resolution at 60Hz over Thunderbolt or 4K resolution at 60Hz over HDMI
Thunderbolt 4 digital video output
- Support for native DisplayPort output over USB‑C
HDMI display video output
- Support for one display with up to 4K resolution at 60Hz
Display Support
- Supported formats include HEVC, H.264, and ProRes
- HDR with Dolby Vision, HDR10, and HLG
Video Playback
- Supported formats include HEVC, H.264, AV1, and ProRes
- HDR with Dolby Vision, HDR10, and HLG
Audio Playback
Audio
- Built-in speaker
- 3.5 mm headphone jack with advanced support for high-impedance headphones
- HDMI port supports multichannel audio output

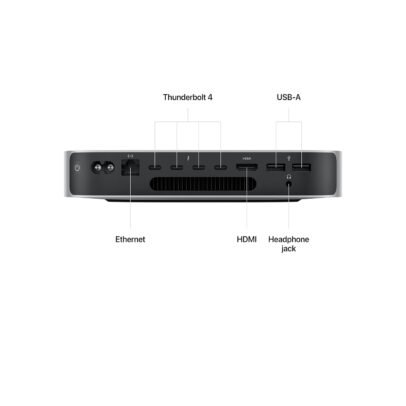

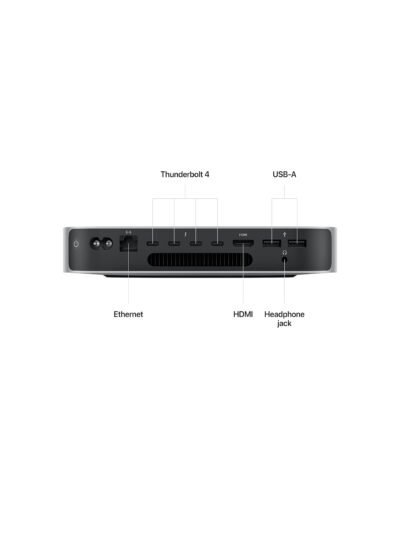

Connections and Expansion
- DisplayPort
- Thunderbolt 4 (up to 40Gb/s)
- USB 4 (up to 40Gb/s)
- USB 3.1 Gen 2 (up to 10Gb/s)
- Thunderbolt 2, HDMI, DVI, and VGA supported using adapters (sold separately)
- Two USB-A ports (up to 5Gb/s)
- HDMI port
- Gigabit Ethernet port (configurable to 10Gb Ethernet)
- 3.5 mm headphone jack
Wi-Fi
- Wi-Fi 6E (802.11ax)2
Bluetooth
- Bluetooth 5.3
Ethernet
- 10/100/1000BASE-T Gigabit Ethernet (RJ-45 connector)
- Configurable to 10Gb Ethernet (Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet using RJ-45 connector)
Height: 1.41 inches (3.58 cm)
Width: 7.75 inches (19.70 cm)
Depth: 7.75 inches (19.70 cm)
Weight (M2 Pro): 2.8 pounds (1.28 kg)
Line voltage: 100–240V AC
Frequency: 50Hz to 60Hz, single phase
Maximum continuous power (M2): 150W
Maximum continuous power (M2 Pro): 185W
Operating temperature: 50° to 95° F (10° to 35° C)
Storage temperature: –40° to 116° F (–40° to 47° C)
Relative humidity: 5% to 90% noncondensing
Operating altitude: tested up to 16,400 feet (5000 meters)
Typical acoustical performance: Sound pressure level (operator position): 5 dBA at idle
Your Mac mini comes with 90 days of complimentary technical support and a one‑year limited warranty. Purchase AppleCare+ for Mac to extend your coverage from your AppleCare+ purchase date and add unlimited repairs for accidental damage from handling, each subject to a service fee of $99 for screen damage or external enclosure damage, or $299 for other accidental damage, plus applicable tax.
- Mac mini
- Power cord
macOS
macOS is the most advanced desktop operating system in the world. And with macOS Sonoma, work and play on your Mac are even more powerful — with new ways to elevate your video presentations, boost your gaming performance, and personalize your device.
Accessibility features help people with disabilities get the most out of their new Mac mini. With built-in support for vision, hearing, mobility, and learning, you can create and do amazing things.
Features include:
- Voice Control
- VoiceOver
- Zoom
- Increase Contrast
- Reduce Motion
- Siri and Dictation
- Switch Control
- Closed Captions
- Text to Speech
Mac mini and the Environment
Mac mini is designed with the following features to reduce its environmental impact:
Made with better materials
Over 40% recycled content in the entire product,7 including:
- 100% recycled aluminum in the enclosure of Mac mini with M2 and M2 Pro, and in the thermal module of Mac mini with M2 Pro
- 100% recycled rare earth elements in all magnets
- 100% recycled tin in the solder of multiple printed circuit boards
- 100% recycled gold in the plating of multiple printed circuit boards
- 35% or more recycled plastic in multiple components
Energy efficient
- ENERGY STAR® certified
Smarter chemistry
- Mercury-, BFR-, PVC-, and beryllium-free
Green manufacturing
- Apple’s Zero Waste Program helps suppliers eliminate waste sent to landfill
- All final assembly supplier sites are transitioning to 100% renewable energy for Apple production
Responsible packaging
- 100% of virgin wood fiber comes from responsibly managed forests
- 96% fiber-based packaging and no outer plastic wrap
